The Ultimate Guide to Choosing the Right Double Shaft Slitting Machine for Your Business

Know what your business needs to pick the best machine. Check your materials, output amount, core sizes, and tension control. Sanhui Machinery offers ten years of accurate making skills. The world plastic film slitter rewinder machine market grew big. It reached 1.5 billion dollars in 2024. A good double shaft slitting machine aids your business. Your flexible packaging work will boost total product output. You will reduce wasted time and master dual rewinder control.

Key Takeaways

• Match your materials to the right blade angles.

• Pick the best slitting methods for them.

• Use differential friction shafts for correct tension.

• This helps you prevent wasting materials.

• Choose automatic features for your machine.

• They reduce setup times and improve daily safety.

• Buy precision slitting machinery for your business.

• It lowers long-term labor costs and scrap rates.

Material Compatibility for Your Slitter Rewinder Machine

Jobs need special slitting tools. Your material shows how to build the machine. Raw items stretch and tear in different ways. Plastic films act differently than paper webs. Metal foils also act differently. Match materials to the right hardware setup. You can cut big rolls easily then. You get great smaller rolls every time.

Sanhui Machinery builds every slitter rewinder machine with care. We design tools for special machine behaviors. Choose the right cutter setups today. Use strong web guides for safety. This protects materials from costly damage.

Substrate Types and Film vs Paper Slitting Machine Demands

Thin films need different tools than paper. BOPP, PET, and PVC change shape fast. Bad tension causes bad shape changes. Foil tears along fine cracks easily. Label jobs need clear depth control. You must not cut release liners.

💡 Operational Tip: Thin polymer films need razor blades. Use thin 8 to 15 mil blades. They stop bad edge curls completely. Heavy kraft paper needs shear knives instead. This stops raw fiber crushing.

Change your tools for your material:

• Bevel and Blade Angles: Thin films need sharp 30° angles. Polished edges cut friction fast. Paper needs tough 45° to 60° angles. They fight scratchy paper fibers.

• Slitting Method: Use open razor blades for films. Use double shear knives for paper. They make clean edges without dust.

• Blade Overlap and Cant Angle: Paper setups angle top blades slightly. Set them 0.5° to 2° sideways. Overlap bottom anvils by tiny amounts.

• Anvil Roller Speed Ratio: Run anvils 5% faster for film. Run anvils 3% to 5% faster for paper. This pulls heavy paper through well.

A paper slitting machine uses strong motors. It uses hoods for paper dust. A film slitting machine uses soft rolls. They stop bad surface scratches. Sanhui Machinery balances every custom build.

Roll Width, Weight Capacities, and Core Sizes

Material thickness changes across big rolls. Small changes build up on rewinders. Standard solid shafts make bad rolls. Tight spots break the material fast. Loose spots create soft, saggy rolls.

A double shaft slitting machine helps you. It uses smart dual differential shafts. Here is how differential shafts help work:

1. Compensates for Thickness Variations: Web changes make different roll sizes.

2. Eliminates Speed Mismatches: Standard shafts turn all rolls together. This breaks webs and creates wrinkles.

3. Controls Torque Independently: Differential chucks slip safely on shafts. This slipping keeps roll tension even.

[Parent Roll Unwind] ---> [Precision Web Guide] ---> [Slitting Section]
                                                           |
                                   ------------------------ ------------------------
                                  |                                                 |
                       [Upper Differential Shaft]                        [Lower Differential Shaft]
                       (Alternating Finished Rolls)                       (Alternating Finished Rolls)

Sanhui Machinery builds strong slitter tools. We help your daily business grow. We handle rolls from 800mm to 1600mm. Our strong frames hold 1500 kg to 3000 kg. They do not bend under weight.

Use 3-inch or 6-inch air shafts easily. Quick chuck adapters swap sizes fast. Good setups stop bad core slipping. You get great finished roll quality. Good machinery makes smooth, perfect rolls daily.

Technical Features of a Precision Double Shaft Slitting Machine

Modern plants need great speed. They need top accuracy. You must know machine features. Good features boost output. Good tools change big webs. They make small coils. Pick the right parts. You will make top products. You will boost daily work. Each slitter rewinder machine uses special cutters. It uses tension tools. It uses digital controls.

Shear, Razor, and Score Slitting Methods

Pick the right cutter. Match it to your material. Materials react to force differently. Material types set blade shapes. They set blade sizes. They set knife spots.

Shear slitting uses smart drives. It makes clean cuts:

• Drive Mechanics: Motors turn bottom knives constantly. Free top knives turn. They rub bottom knives.

• Speed Differential: Bottom blades spin fast. They run 3% faster. This cuts web edges cleanly.

• Cutting Angles: Set clear knife angles. Base them on web thickness. Base them on blade sizes.

Razor blades slice thin plastic. They make zero dust. A paper slitting machine cuts paper. It uses round shear knives. These knives cut thick fibers. A slitter cuts clean edges. It keeps thin webs safe. Good cutters speed your work. They save your material.

Tension Control Systems and Differential Shafts

Tension tools keep webs straight. High speeds need good control. A double shaft slitting machine works well. It uses two rewind shafts. It handles single finished rolls. Thin web spots hurt rolls. They make bad roll sizes. Standard shafts cause tight spots. They cause loose rolls. Differential shafts fix this. Roll cores slip safely alone.

[Web Unwind] ---> [Load Cell Sensor] ---> [Edge Position Sensor] ---> [Differential Rewind Shafts]
                         |                         |                         |
                         v                         v                         v
               (Real-Time Tension)       (Active Alignment)        (Dynamic Roll Slippage)

Closed systems check moving webs.

💡 Tension Control Tip: Smart load cells check drag. Controllers use cool code. They find real tension fast. These codes shift fast servos. Systems pull webs smoothly. They keep rewinders working well.

Web guides work with controls. Edge Position Control (EPC) stops shifts. It stops bad edge curls. It uses three easy steps:

1. Target Detection: Light sensors track running edges.

2. Signal Correction Processing: Controllers check bad errors fast. They calculate good movements.

3. Actuation: Strong servos shift web frames. They align the web path.

Good tension stops bad wrinkles. It stops bad web stretches. Sanhui Machinery builds top tools. Each slitter rewinder machine works well. It makes good rolls daily. Integrated tools keep web tension even.

High-Speed Production and Slitting Precision

Fast speeds boost total output. They drive company profits high. Standard models run fast. They reach 200m/min to 400m/min. High-speed models hit 800m/min. They run on full lines. Safe speeds stay at 70%. They reach 80% capacity.

[Standard Models: 200 - 400 m/min]  =======>  Optimal for converting standard paper & heavy film
[High-Speed Models: Up to 800 m/min] =======>  Designed for high-volume film packaging production

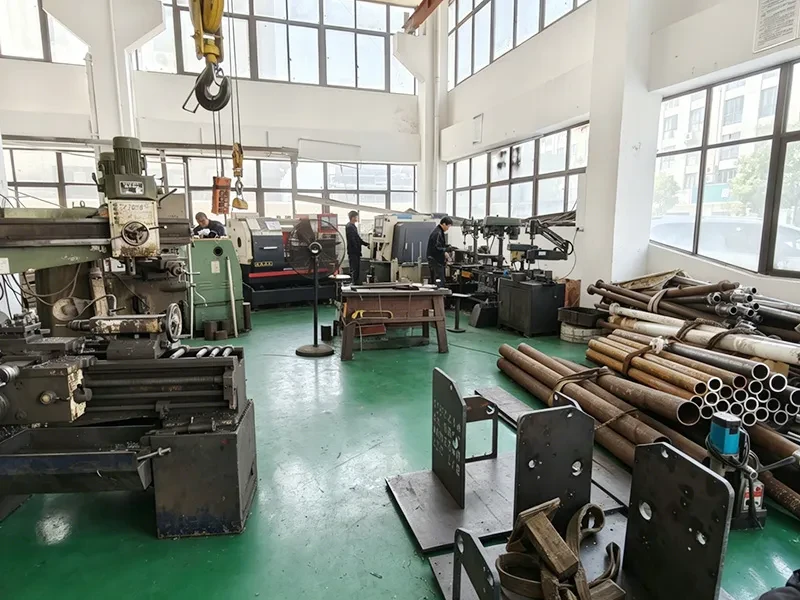

High speeds need tough frames. They need smart build plans. Sanhui Machinery cuts heavy steel. We build every paper slitting machine frame. Tough steel stops bad shakes. It helps long, fast runs.

 -----------------------------------------------------------------------
|                       SANHUI PRECISION METRICS                        |
 -----------------------------------------------------------------------
|  [Slitting Accuracy]           ========================>  ±0.1 mm     |
|  [Rewinding End Face Flatness] ========================>  ≤ 0.5 mm    |
|  [Minimum Slitting Width]      ========================>  10 mm       |
 -----------------------------------------------------------------------

Our precision builds hit ±0.1mm. Dual shafts deliver smooth roll ends. They keep flatness under ≤0.5mm. Accurate knives stop rough edges.

A good paper slitting machine cuts wide rolls. It cuts narrow 10mm strips. It keeps perfect edge lines. Precision drives total efficiency. They work through every step. Sanhui Machinery builds great tools. Each slitter rewinder machine lasts long. Great machine accuracy ensures quality. You send perfect orders daily.

Enhancing Operational Efficiency with Sanhui Machinery

Sanhui Machinery builds great tools for your daily business. Fast work needs top quality and high tool strength. Smart machines change your daily work total output fast. They fit your special plant work needs perfectly.

Automation Features and Fast Setup Times

Smart tools cut bad stop time between jobs. Users set full jobs on easy screens fast. Digital tools help your team run each slitter rewinder machine process. Active tools keep webs flat during fast speed shifts.

Auto tools boost your overall total accuracy and output. A top slitter rewinder machine uses smart digital tools. Here are top perks of smart auto blade tools:

• Fast Blade Positioning: Auto blade tools drop job setup times down fast. They turn 60 minutes into 5 minutes.

• Higher Output: Lower stop times keep your film slitting machine running.

• Fewer Errors: Exact blade spots stop user errors. They cut bad waste material fast.

Users run each dual shaft easily without hard physical work. Smart slitter designs boost your total daily production fast.

💡 Operational Efficiency Tip: Auto lifting tools let one person load big rolls. This upgrade speeds your daily work path right away.

Safety Standards and Maintenance Protocols

User safety guides modern machine build plans. Full safety tools guard your team during fast runs. Smart safety doors stop machines fast if doors open. Easy stop buttons let users freeze machines in emergencies.

Good care keeps tools running well for years. Sanhui builds every double shaft slitting machine with modular parts. Easy access helps you check each part fast. Strong frames hold up through years of hard work. Follow easy care steps to keep your machine strong.

• Shaft Care: Feed clean air to shafts every month. This stops rust and protects ring parts inside.

• Blade Inspection: Check blade spots often to keep cuts clean. Clean blades with safe liquids to stop glue build.

• Payload Management: Keep roll weight safe to protect heavy shafts. Overloads bend your double shaft slitting machine shafts.

Sanhui Machinery backs your slitter rewinder machine with strong coverage. You get a full 1-year total machine warranty. We offer a 2-year main part warranty too. Our team gives 24/7 technical help online anytime. Good care keeps your paper slitting machine working well. Clean tools keep your daily slitting work very profitable.

ROI and Financial Evaluation for Double Shaft Slitters

Pick a double shaft slitting machine with care. Check all total costs first. Good machines save material quickly. They lower daily work costs. A smart slitter rewinder machine helps your floor. Your business stops big material loss. You need fewer workers daily.

Waste Reduction and Yield Optimization

Scrap waste hurts business profits fast. Old single-shaft units make bad tension. Bad tension ruins full rolls. Differential shafts fix bad rolls. You run thin materials safely. Webs do not stretch or tear.

A smart paper slitting machine saves material. Good tension tools build great rolls. You sell every finished roll. Stop wasting costly raw materials today.

Total Cost of Ownership and Long-Term Value

Look past initial machine prices. Smart tools lower power bills. They need fewer repair visits.

💡 Financial Insight: Strong engineering stops machine breakdowns. A good paper slitting machine pays back fast. Material savings cover costs in months.

Strong Sanhui frames protect your money. Each durable slitter handles tough jobs easily. You fix fewer broken parts over time.

• Enhanced Operational Efficiency: Smart controls double your total roll output.

• Minimized Labor Reliance: One worker runs the whole machine easily.

• Versatile Rewinder Capability: Run many packaging items on one machine.

Sanhui tools help your business grow. Pick a strong slitter to boost profits.

markdown

Pick the best double shaft slitting machine easily. Check your material properties first. Set your target speed limits. Review auto functions next. Figure total costs fast. Sanhui Machinery supports your goals well. We offer custom rewinder tools for you. We test every slitter rewinder machine carefully. This guarantees super exact cuts every time. Our experts build high-performance slitter models. They increase your overall output fast. This strong slitter cuts material waste today. It speeds up your daily work. Ask Sanhui Machinery for quotes right now!

FAQ

What materials can you process on a Sanhui double shaft slitting machine?

Easily cut soft items. Cut plastic films like BOPP, PET, and PVC. Cut bright foil too. Cut strong paper and sticky labels fast.

💡 Material Tip: Machines adjust tension automatically. They protect thin items. They protect thick items from costly damage.

How accurate is the slitting and rewinding process?

Sanhui slitting tools cut with great care. They meet your needs fast:

• Slitting Accuracy: Up to ±0.1mm

• Rewinding Flatness: Smooth roll ends reach ≤0.5mm

This top accuracy gives smooth edges. It gives great rolls every time.

What maximum running speeds can these machines reach?

Normal models run fast. They reach 200m/min to 400m/min easily. Fast models reach 800m/min. Run machines at 70% to 80% speed safely. You get top output daily.

Why should you choose automatic closed-loop tension control?

Auto tension control keeps web pull smooth. It works during fast rewinding. This smart tool stops bad web wrinkles. It stops edge shifts and core slipping. You cut scrap waste fast. You boost daily product total yield.

What warranty and technical support does Sanhui Machinery provide?

[1-Year Full Warranty]  ==>  Covers complete machine assembly
[2-Year Core Warranty]  ==>  Protects vital mechanical components
[24/7 Global Support]   ==>  Offers immediate remote help & 48hr visits

You get full machine protection today. You get lifetime help anytime.
