What is Precision Slitting and How Does a Metal Slitting Machine Work?

Exact cuts turn big metal rolls into thin strips. These strips are very straight and neat. Smooth edges help you make better products later. Factory workers use a precision slitting machine every day. It cuts thin foils and heavy metal rolls quickly. Knowing how this works helps you save metal. It also helps you create less trash.

Key Takeaways

• Precision slitting cuts big metal rolls into thin strips.

• It uses sharp spinning blades.

• It does not melt the metal.

• Right blade space keeps edges clean.

• Auto tension control stops material damage.

• Auto edge guides keep metal rolls straight.

• This works fast.

• Smart slitting machines make more goods.

• They also cut down on waste.

Understanding Precision Slitting and Shearing Mechanics

You change raw metal coils into exact strips. You use a smooth cutting method. Precision slitting uses strong forces. It does not melt metal. It does not grind metal. Round blades turn together. They cut the fast sheet. You must learn these physical forces. This action saves your material.

Shearing Force and Knife Clearance

Round knives press the metal top. They also press the bottom. This press creates big stress inside. The sheet breaks on a line. It uses a natural break-out action. You must set a good knife gap. This gap guides the stress line. A bad gap pushes the sheet. It will not cut well.

Key Takeaway: Correct knife clearance creates a straight line. Good gaps save your equipment. They also save raw material.

Sanhui Machinery builds strong slitting machine frames. This thick frame stops hard shaking. The heavy base keeps cutters quiet. It works well under heavy tasks. Our setups reach ±0.1mm slitting accuracy. You can trust this high precision. It works for every single batch.

Tension Control and Burr-Free Edges

You must watch metal strength closely. Metals pull differently under pressure. Strong steel coils resist force. Soft aluminum foils stretch fast. Sharp round blades leave small burrs. This happens if you pull too hard.

Bad edges ruin future factory work. Steady web tension keeps metal flat. It moves safely past round blades. You guide the final quality. You keep a steady line pull. Good tension stops side movement. It works during fast cuts.

Smooth edges protect your final product. They also make work safer. Good tension removes sharp points. You give great metal strips. Your customers get them every time. Stable machines make better products. They help all industrial uses.

How a Precision Slitting Machine Operates Step-by-Step

Huge steel rolls become narrow strips. A metal slitting machine cuts them. These four steps show how. Master rolls move smoothly. They go from load to rewind.

Uncoiling and Master Roll Entry

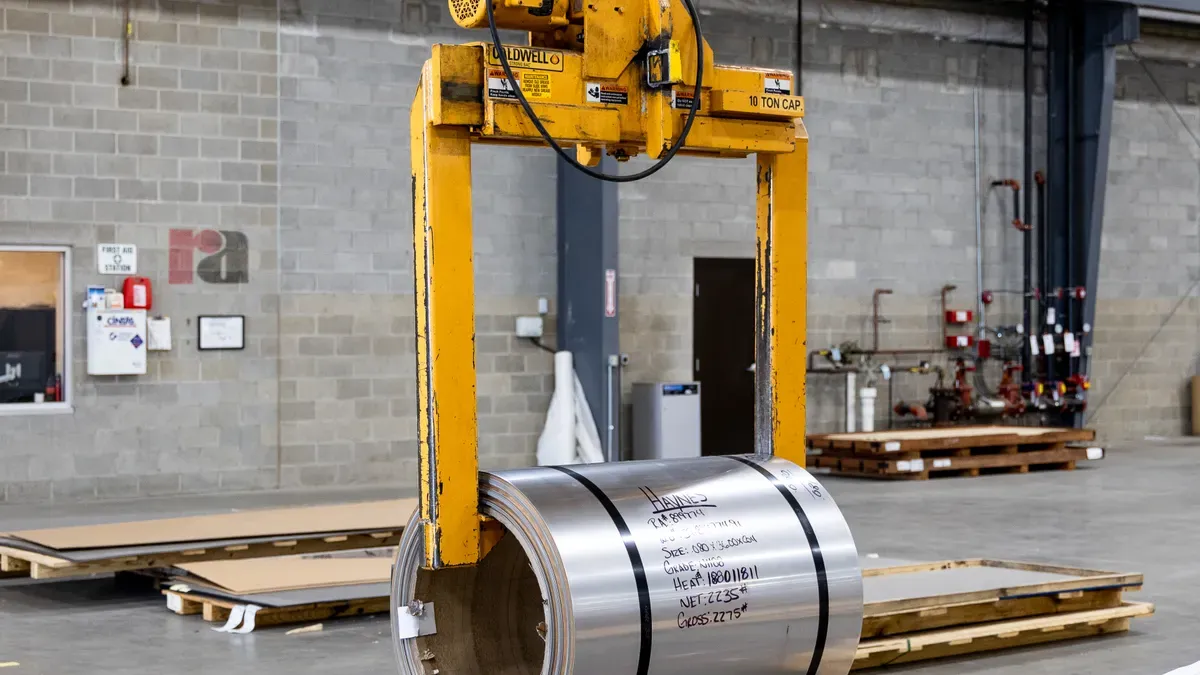

You start by loading coils. Uncoiler machines take heavy metal. Hydraulic cars aid workers. They make loading fast:

• Heavy-Duty Capacity: Lift big coils. Coils weigh up to 30 tons. Move them into place.

• Operational Efficiency: Loading goes fast. Move heavy metal quickly.

• Enhanced Safety: Stop work hazards. Move big rolls safely.

Feed metal into guides. Edge systems keep metal straight. Systems catch shifts early:

The EPC system runs fast:

1. Continuous Sensing: Sensors watch metal edge drift.

2. Error Calculation: Brain counts exact shift needs.

3. Actuator Execution: Motors push metal back straight.

4. Closed Feedback Loop: Steps repeat fast continuously.

Sanhui Machinery builds good systems. Metal will not drift. Sheets enter knives straight.

Slitting and Scrap Management

Metal enters the slitting machine. Arbors hold sharp round knives. Knives cut strips at once.

Cut edges create waste strips. Scrap choppers cut this waste. Work stays safe and clean:

Choppers work inside lines. They chop edge trim fast. Clean waste drops out easily.

Recoiling Finished Strips

Pull metal strips through tensioners. Recoiler shafts take finished metal. Good tension makes neat rolls.

Pro Tip: Loose tension ruins metal coils. Automatic controls stop defects.

Sanhui Machinery uses automatic controls. Pulling force stays totally steady. A precision slitting machine runs 800m/min. Strips stay flat within ≤0.5mm. Coils wind tight every time.

Core Components of a Metal Slitting Machine

Special metal parts cut metal coils. Each tool helps the line work.

Uncoiler Mandrel and Entry Guides

The uncoiler mandrel holds heavy coils. Hydraulic parts expand inside it. This locks the roll core tight. Entry guides line up sheets. They stop metal side shifts.

Slitter Head and Rotary Arbor

The slitter head cuts your metal. Two parallel arbors hold round knives. You change arbor space for width. Strong arbors will not bend now.

Note: Straight arbors protect your sharp blades. They make clean cuts every time.

Tension Stand and Recoiler Shaft

The tension stand presses moving strips. This pressure packs rolls tight. The recoiler shaft spins fast. It pulls metal into neat rolls.

Selecting a High-Precision Slitting Machine

Check key facts before buying tools. The right steel slitting machine helps. It raises plant output fast. It stops raw material waste. Great precision slitting machine setups work. Use this list for tools:

Manufacturing Benefits of the Sanhui Machinery Slitting-Machine

Extreme Tolerance and Flatness Accuracy

You get great size control. Our tools keep ends flat. They stay within ≤0.5mm. Widths stay accurate. They stay within ±0.1mm. Very flat strips help later. Stamping works much better. Roll forming works better too. Flat strips fix all bad bends:

• Prevents Equipment and Material Failures: It stops material tears. It stops machine jams.

• Improves Alignment: It stops bad tracking errors. Material moves very smoothly.

• Ensures Production Quality: It stops bad parts. It removes bad waves.

Material Versatility for Metal Foils and Coils

You cut many metals easily. Soft aluminum needs care. Delicate sheets scratch fast. They need special surface protection. Heavy steel needs stiff setups. Smart tools adapt fast. They fit all your needs:

High Efficiency in Precision Slitting

You grow total factory output. You also lower material waste. The line hits 800m/min. Auto controls lower manual labor. You protect product quality. Each roll stays very good. The line saves metal. You earn money back fast. Better cuts help your shop.

Exact slitting turns raw coils into accurate metals. You boost factory output. You stop metal waste. Sanhui Machinery helps you. We build trusted slitting machines for your needs.

Our smart tension systems improve your final yield. Exact knife gaps help too. 💡 Smart AI cameras will boost accuracy even more.

FAQ

How accurate is a modern metal slitting machine?

Sanhui Machinery slitting machines give high accuracy up to ±0.1mm. Strong machine frames and good adjustments keep metal straight. You get neat strip widths every time.

Note: Clean sharp blades help keep your cuts exact.

How do automatic tension controls protect your metal coils?

Automatic tension controls keep steady pulling force while winding. This action stops material stretching. It stops folds and surface marks. Your metal rolls stay flat with neat edges.

What minimum strip width can you cut?

You can cut strips as narrow as 10mm. You change round arbor spacers to adjust sizes. This easy setup fits your exact job needs.

Why should you choose rotary shearing over laser cutting?

Rotary shearing performs precision slitting at high speeds up to 800m/min. You cut big master rolls faster than hot lasers. This cold mechanical method stops heat damage on edges.
