SHLS-TC Economic Vertical Slitting Machine
1. Product Overview & Core Positioning
The SHLS-TC economic Vertical Slitting Machine is a cost-effective vertical film slitting rewinder independently developed by Sanhui Machinery. Designed as an entry-level vertical slitter, it targets small & medium soft packaging converters engaged in plastic film processing. Balancing stable cutting performance and competitive investment cost, this model is widely used for slitting PET, BOPP, PVC, PE, composite film and aluminized metallized packaging film.
Compared with heavy-duty vertical slitter series SHLS-A and SHLS-B, SHLS-TC retains essential core configurations including shaftless hydraulic unwinding, laser positioning, servo tension control and EPC web guiding, while optimizing structural layout to control procurement budget, making it the preferred solution for newly established packaging factories.
2. Core Advantages & FAB Introduction
2.1 Shaftless Hydraulic Unwinding Structure
Feature: Independent hydraulic shaftless unwinding stand, maximum raw roll load up to 1000KG.
Advantage: Direct loading of jumbo rolls without shaft penetration, avoiding heavy shaft handling.
Benefit: Greatly shorten roll change time, reduce manual labor intensity and improve workshop operating efficiency.
2.2 Built-in Automatic Laser Paper Tube Positioning Lamp
Feature: Standard equipped laser alignment positioning device.
Advantage: Visual marking for paper tube installation, no repeated manual measurement.
Benefit: Reduce machine debugging time, guarantee consistent slitting width accuracy and lower waste rate.
2.3 Optional Dual / Triple Servo Driving System
Feature: Closed-loop servo tension control for unwinding and rewinding section.
Advantage: Stable tension during startup, acceleration, constant speed and deceleration.
Benefit: Effectively prevent thin film stretching, wrinkling and edge warping to obtain neat finished rolls.
2.4 Single Swing-out Automatic Finished Roll Unloading Arm
Feature: One-side swing mechanical unloading structure.
Advantage: Finished rolls can be pushed out automatically after production stop.
Benefit: Convenient roll picking, support semi-continuous production and save auxiliary handling equipment.
2.5 Siemens PLC Intelligent Control System
Feature: Siemens PLC color touch screen human-machine interface.
Advantage: Visual parameter setting, real-time operation data display.
Benefit: Support automatic meter counting, fixed-length stop and residual material alarm, easy operation for new operators.
2.6 High Precision EPC Photoelectric Web Guiding
Feature: Photoelectric EPC edge position correction system.
Advantage: Dynamic deviation correction during high-speed running.
Benefit: Correction accuracy reaches ±0.1mm, reduce raw material edge trimming loss.
2.7 High Running Speed up to 400 m/min
Feature: Maximum operating speed 0~400 m/min.
Advantage: Meet medium-volume continuous converting demands.
Benefit: Improve single-shift output and shorten delivery cycle for film orders.
2.8 Standard Slip Differential Air Rewinding Shaft
Feature: Standard 3-inch slip differential air expansion shaft.
Advantage: Independent tension control for each narrow finished roll.
Benefit: Solve uneven rewinding defects of thin and easily deformed plastic films.
2.9 Flexible Customization Support
Feature: Multiple optional upgrades and customized specifications.
Advantage: Match different material width, roll diameter and factory power standard.
Benefit: Avoid over-investment and configure machine according to actual production requirements.
3. Applicable Processing Materials
The vertical slitter adapts to various roll films widely used in flexible packaging industry:
- Polymer films: PET, BOPP, OPP, PE, PVC, CPP film
- Functional packaging materials: Aluminized metallized film, composite laminated film
- Label raw materials: Printing base film, adhesive substrate film
Note: For ultra-thin film below 12μm or special high-temperature resistant materials, please consult our engineer to confirm matching configuration.
4. Complete Technical Specification Parameters

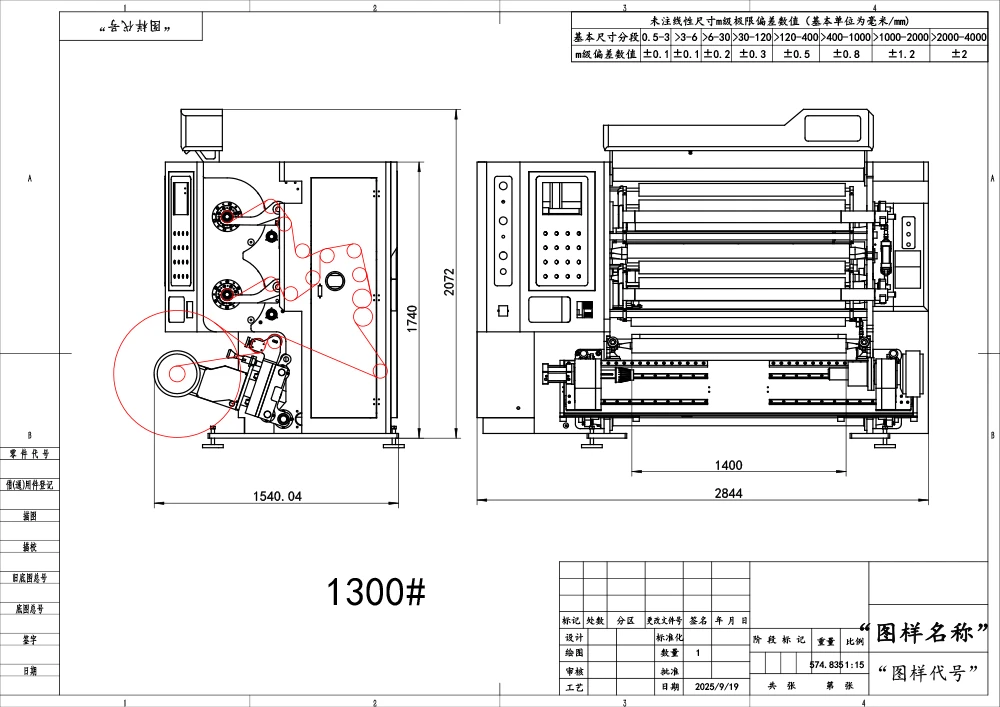

| Parameter Item | SHLS-TC1100 | SHLS-TC1300 | SHLS-TC1600 | SHLS-TC1800 |
|---|---|---|---|---|
| Effective Working Width | 1100mm | 1300mm | 1600mm | 1800mm |
| Max Unwinding Diameter | Φ800/Φ1200mm Optional | Φ800/Φ1200mm Optional | Φ800/Φ1200mm Optional | Φ800/Φ1200mm Optional |
| Max Rewinding Diameter | Φ450mm | Φ450mm | Φ450mm | Φ450mm |
| Max Operating Speed | 0 ~ 400 m/min | 0 ~ 400 m/min | 0 ~ 400 m/min | 0 ~ 400 m/min |
| EPC Correction Precision | ±0.1 mm | ±0.1 mm | ±0.1 mm | ±0.1 mm |
| Total Installed Power | 18 kw | 23 kw | 28 kw | 33 kw |
| Net Machine Weight | 2600 kg | 2800 kg | 3000 kg | 3200 kg |
5. Optional Custom Upgrade Modules
- Driving upgrade: Upgrade dual servo to triple servo full tension control
- Rewinding shaft: 4-inch / 5-inch / 6-inch air expansion shaft customization
- Slitting tool: Pneumatic circular knife holder, waste edge suction exhausting device
- EPC upgrade: Ultrasonic sensor for transparent film automatic tracking
- Electrical system: Custom voltage & frequency for global markets (380V/220V, 50Hz/60Hz)
- Function expansion: Multilingual touch screen, full safety protective cover
6. Model Comparison: SHLS-TC VS SHLS-A Vertical Slitter
| Comparison Item | SHLS-TC Economic Vertical Slitter | SHLS-A Standard Vertical Slitter |
|---|---|---|
| Market Positioning | Economical entry-level model | Standard heavy-duty production model |
| Max Running Speed | 400 m/min | 450 m/min |
| Frame Structure | Economical optimized frame | Strengthened thickened steel frame |
| Standard Configuration | Laser positioning, shaftless unwinding, single swing unloading | Complete standard configuration richer reserved expansion interface |
| Suitable Customer | New factory, medium batch production, cost priority | Large converting factory, long-term continuous high-volume production |
Suggestion: If you focus on cost control and conventional film slitting, choose SHLS-TC. For long-term high-speed heavy-load continuous production, please check SHLS-A Standard Vertical Slitting Machine.
7. Frequently Asked Questions
What films can SHLS-TC vertical slitting machine process?
It supports PET, OPP, BOPP, PE, PVC, composite laminated film and aluminized metallized film, widely used in food packaging, daily chemical label and flexible printing industries.
Does SHLS-TC vertical slitter include laser positioning function?
Yes, laser paper tube positioning lamp is standard configuration, helping operators quickly align paper tube without repeated measurement.
What is the main difference between SHLS-TC and SHLS-A vertical slitter?
SHLS-TC is economical entry model with max speed 400m/min for cost-sensitive customers. SHLS-A is reinforced standard version with higher stability and richer expandable functions for mass continuous production.
Can I customize different sizes of air rewinding shaft?
Standard equipped with 3-inch slip differential air shaft. 4-inch, 5-inch and 6-inch air shafts can be customized according to your paper tube specifications.
What is the maximum operating speed of SHLS-TC slitter?
The maximum stable running speed reaches 400 meters per minute, suitable for conventional plastic film slitting and rewinding.
Does Sanhui provide overseas installation and technical training?
We supply detailed operation manuals and video guidance. On-site overseas installation and operator training service can be negotiated for bulk orders.
