SHLS-A Standard Vertical Same-Side Slitting Machine

Performance and Features:
● The unwind and rewind shafts feature a single-side fixed, swing-out design; this ensures effortless operation, significantly reduces the physical strain of manual roll loading and unloading, and boosts operational efficiency.
● Equipped with an intelligent PLC control system and automatic tension sensing/adjustment, the machine monitors tension fluctuations in real-time and makes automatic adjustments. This ensures uniform tension during slitting and rewinding, resulting in a flat, wrinkle-free finished product.
● Features a dual-slitting configuration supporting both rotary and straight blades; slitting methods can be flexibly switched based on material properties and processing requirements, making the machine versatile and suitable for diverse applications.
● Incorporates a high-precision automatic web-guiding system that monitors the material's running path in real-time and automatically corrects deviations, ensuring neat slit edges, precise rewinding, and reduced material waste.
● Equipped with an automatic edge-trim removal system (air-assisted); trim waste is automatically blown out from the side of the machine, eliminating the need for manual cleanup, maintaining a tidy workshop, and enhancing production continuity.
● Integrates functions such as automatic length counting, automatic alarms/shutdowns for material depletion, and precise stops at set lengths; this enables intelligent process control, prevents material waste, and ensures operational safety.
● Utilizes a same-side loading/unloading design that simplifies workflows; operators do not need to move back and forth, greatly improving ease of use and reducing the risk of operational errors.
● Achieves a maximum operating speed of 200 m/min, balancing processing precision with production efficiency to meet the needs of high-efficiency, small-to-medium batch processing.
● Supports either single or dual AC motor control configurations, allowing for flexible selection based on production scale and precision requirements to suit various production environments.
● The standard model accommodates a maximum unwind diameter of 600 mm and a rewind diameter of 450 mm, meeting conventional roll processing needs with reliable adaptability.
● Key specifications—such as working width and overall dimensions—can be flexibly customized to align with the customer's workshop layout, material specifications, and production requirements. · The unwinding unit comes standard with a 3-inch lug-style air shaft, and the rewinding unit with a 3-inch leaf-style air shaft, ensuring secure clamping and convenient unloading; other sizes can be customized upon request to accommodate a wider range of material roll specifications.

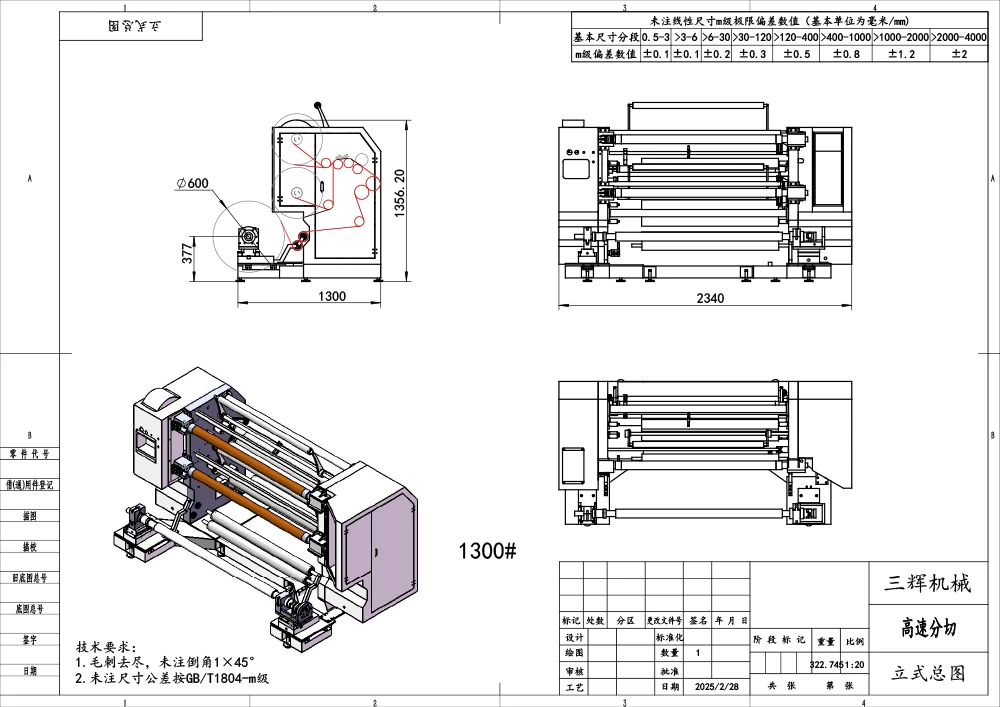

Specifications showing only the width of the specific section：
