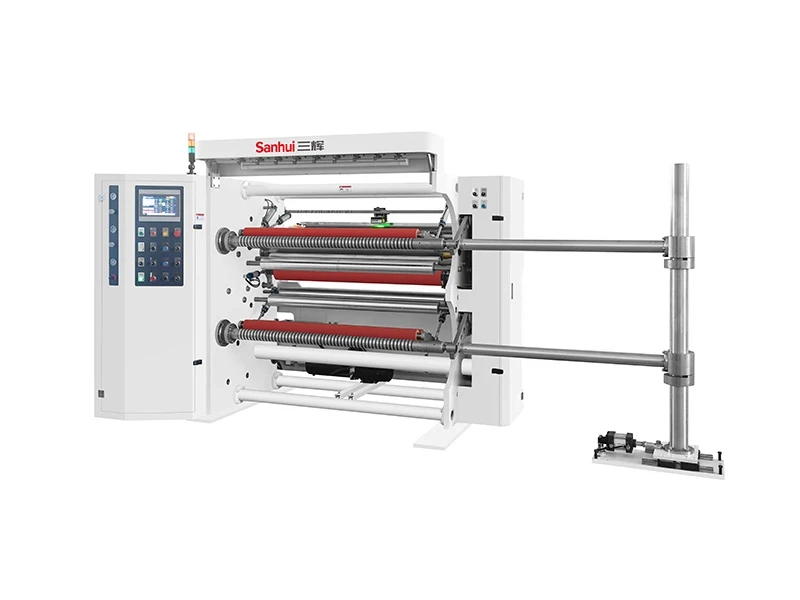

Touch Screen Slitting Machine Control Systems

Date:2026/8/4 10:44:27 Click:7

You face daily work stress in factory plants. Human setup mistakes, loose material rolls, high waste, and slow changes hurt work speed. A smart touch screen slitting machine fixes these big line problems.

Operational Insight: Built-in control tools stop worker guesswork. They mix automatic tension fixes with digital recipe saves.

New machines mix a logic controller with a clear interface screen. This setup gives real-time checks and auto tension control. You easily save and open job setups with one touch. Plant engineers and workers get exact width choices and zero roll shifts. Running a good touch screen slitting machine cuts pricey material trash. A solid roll slitting machine gives great wound rolls each shift. Buying a top-grade slitting machine boosts your total daily output.

Key Takeaways

Smart control systems change tension to prevent material damage.
Touch screens help set up jobs fast.
They also help workers make fewer mistakes.
Auto blade placement makes exact cuts within ±0.1mm accuracy.
Built-in camera systems check materials for flaws right away.
Better machine controls cut factory waste.
They also help make more products every day.

Architecture of Touch Screen Slitting Machines

Modern converters need great accuracy for daily work. You need a strong control system. It manages steady web movement. Modern slitter setups join smart digital chips. They use live feedback with active motor drives.

PLC Logic and Motion Control Coordination

The main controller acts like a brain. It reads live data. The data comes from special sensors and encoders. It calculates torque changes very fast. It runs every roll slitting machine job well.

Sanhui Machinery creates smart logic software. It keeps web movement very smooth. The unit balances web pulls right away. This happens during fast speed changes. The chip maintains strong control over materials. This action stops thin materials from ripping.

Touch Screen HMI for Intuitive Operation

You manage tough setup steps easily. You use a clear visual screen. Sanhui Machinery builds each touch screen slitting machine. They add simple control setups. This design makes typing numbers easy. It stops costly worker mistakes. Workers quickly check speeds, cuts, and alerts.

Operational Tip: Simple screens help workers learn different types of slitting machines fast.

Workers type width numbers on the screen. The logic system updates all drives fast. This smart talk improves every slitting machine run. You do not need manual fixes.

Integration of Servo Drives and Sensors

Exact movement needs good teamwork. Drives and sensors must work together. Smart servo motors turn roll stands accurately. Main chips match these motors well. They create smooth speed changes.

Smart sensors send position news to drives. Fast light tools follow material edges well.

Sensor Category	Structural / Signal Features	Operational Advantages
Fiber Optic Sensors	Light fiber sensing setup	Gives high accuracy easily. Needs no extra tuning when conditions shift.
Opposing Beam Sensors	Fork style U shape frame with light receivers	Uses direct signal blocks. Tracks web edges well based on thickness.

Laser tools fight heat, dust, and static. They keep web lines very straight. They work inside your roll slitting machine. Exact light tracking makes roll sides smooth. Buying a good roll slitting machine boosts quality. Picking a top slitting machine aids your plant. Sanhui Machinery builds each slitting machine well. This choice gives long productivity. Custom slitting machine options cut material trash.

Core Features of Automated Roll Slitting Machines

Plants need great accuracy. They run fast daily. Smart tools give smooth work. Sanhui Machinery uses modern parts. These tools stop line faults. They raise total factory output.

Closed-Loop Tension Control and Edge Guiding

Bad web pull makes big defects. Loose material wrinkles easily. It stretches and strays. Full tension setups solve this. Sensors check pulls in real time. Controllers test signal numbers fast. Quick fix signals go out. Drives change pull force fast. This fast action protects thin film, paper, and foil.

Operational Insight: Live pull fixes stop material stretch. They prevent bad roll damage.

1. Live Checks: Sensors track exact pull forces.
2. Signal Checks: System tests data against targets.
3. Fix Commands: System computes variance fast.
4. Drive Tweaks: Motors adjust force for balance.
5. Material Setup: Profiles shield fragile films.

Smart EPC and LPC tools track web edges well. Light sensors check lines instantly. They keep edges tight to ≤0.1mm. This precise tracking stops material drift.

Mechanism / Feature	Function in Quality Maintenance	Operational Benefit at High Speeds
Pneumatic Slip Differential Shafts	Adjusts speed and tension independently for each roll	Resolves variations in material thickness; prevents telescoping, starring, and uneven roll density
Automatic Tension Control System	Employs taper control powered by Siemens PLC logic	Eliminates loose or tight spots, delivering uniform roll consistency and minimizing defect rejections
High-Precision Guiding (EPC/LPC)	Keeps web alignment precise within a ≤0.1mm tolerance	Prevents material drift, significantly cutting down on edge trim waste
Advanced Servo Control & Dual Slitting	Pairs intelligent automation with adaptable razor/shear knife systems	Safely and precisely slits diverse substrates ranging from delicate 12-micron films to heavy paperboard at speeds up to 800m/min

Recipe Storage for Fast Job Changeovers

Manual setup steps waste time. Workers spend hours setting parts. A touch screen slitting machine fixes this fast.

Save job recipes on screens. The unit saves pull profiles. It saves speeds and knife paths. Workers load profiles with one touch. System drives update fast. Digital storage aids film, paper, foil, and cloth. Quick setups stop human math errors. You get fast changes, less scrap, and good rolls.

Automatic Blade Positioning and Speed Sync

Exact blades make clean cuts. They leave no bad edges. Manual setup takes time. It causes bad width setups. New auto setups use servo control for placement.

1. Great Control: Gives true knife paths. Stops worker setup errors.
2. Scrap Cuts: Cuts setup mistakes. Reduces starting web trash.
3. Profit Boosts: Cuts product returns. Improves plant gains.

An automatic roll slitting machine syncs knives and speed. The chip matches unwinds, knives, and rewinds fast.

Feature / Dimension	Manual Slitting Blade Positioning	Automatic Knife Positioning
Control Mechanism	Manual physical measurement, unlocking, moving, and securing of blades	Digital commands using full-servo PLC control technology
Accuracy & Precision	Vulnerable to micro-misalignments, width drift, and manual errors	Direct programmatic indexing to precise coordinates
Process Efficiency	Labor-intensive physical calibration with extended downtime	Immediate, repeatable positioning and stable continuous operation

This linked setup holds steady web tension. Top units hit 800m/min speeds.

Performance Metric	High-Performance Standard Value	Comparative Advantage
Slitting Precision Tolerance	±0.1 mm	Outperforms manual methods (±0.5 mm)
Maximum Slitting Speed	100 meters per minute	Exceeds competitor averages by 20%

Exact cutting gives flat roll ends below ≤0.5mm. You get even roll firmness. Edges stay straight. Sanhui Machinery builds every slitting machine with strong parts. This choice keeps runs steady. Picking a top roll slitting machine improves daily output. Using a smart slitting machine unlocks fast work. Flexible designs fit packing, labels, and converting jobs. Running a good roll slitting machine builds happy buyer ties. A Sanhui slitting machine boosts work and lowers costs.

Diagnostics and Safety in Modern Slitting Machines

New converting plants need total trust and safe workers. Smart tools watch your setup each shift. Safe built-in tools shield workers. They stop high equipment harm.

Automated Fault Detection and Alarms

The main brain tracks key hardware non-stop. Sensors test motor heat, web pull, and shake. The smart chip finds small faults fast. It warns your worker before major breakdowns happen.

1. Live Sensor Tracking: Light and heat sensors scan moving parts.
2. Logic Analysis: Main chips compare data to safe limits.
3. Instant Notification: Screen alerts show exact fault spots.
4. Protected Shutdown: The unit stops web movement safely.

The screen shows clear fault news and pictures. Workers find web snaps or bad drives fast. Quick fixes help keep good maintenance and safety steps.

Emergency Stops and Safety Interlocks

Fast web runs need quick physical shields. New units place stop buttons all around frames. Door locks stop inner drives when doors open.

Safety Notice: Fast air brakes stop heavy rolls during stops. This quick action shields workers from moving parts.

Safety Feature	Protective Function	Operational Benefit
Emergency E-Stop Buttons	Cuts motor power right away	Stops worker hurt near bad line hazards
Safety Door Interlocks	Stops fast drives when doors open	Prevents bad contact with sharp spinning blades
Automated Air Brakes	Stops big material rolls in seconds	Lowers lost material during fast stops

Active safe tools keep work smooth and fast. These modern steps help teams follow top safety rules.

Sanhui Machinery Quality Inspection Integration

Sanhui Machinery adds smart camera tools to every slitting machine. Cameras check material tops while cutting fast webs.

Vision tools spot small marks, holes, and print faults. The main screen tags bad spots with foot numbers. Workers cut out bad parts before final roll packing.

Picking a slitting machine brings clear roll edges. A roll slitting machine holds web lines straight fast. Every Sanhui slitting machine joins strong safe parts. A Sanhui roll slitting machine shields team workers well.

ROI and Performance Gains from Control Upgrades

Updating plant controls brings real money wins. Smart tech turns daily costs into profit.

Waste Reduction and Precision Slitting

Hand setup wastes good stock. A touch screen slitting machine stops trial steps. Digital tools set blade tools fast.

Automatic tension stops stretched rolls. The main chip checks web moves. Fast signals drive motors fast. This action holds every step steady.

💡 Cost Efficiency Note: Auto blades cut edge waste. They save lots of stock money yearly.

Digital accuracy shields pricey films and foils. Precise guides hold ±0.1 mm cuts. Plants get top precision on every batch. This steady slitting machine work lowers scrap.

Lower Maintenance and High Production Yields

Old lines suffer sudden stops. Adding a top slitting machine protects plants. Smart software checks heat and shakes.

[System Health Scan] ➔ [Early Defect Alert] ➔ [Targeted Maintenance] ➔ [Zero Unplanned Downtime]

Smart locks shield drives at fast speeds. Systems run smooth at 800 m/min. Screens warn workers before breaks happen. Fixed checks replace old guesses.

Operational Advantage	Traditional Manual Setup	Modern Sanhui Control Upgrade
Material Scrap Rate	5% – 8% average	Less than 1% total
Daily Machine Downtime	2 to 3 hours	Under 20 minutes
Maintenance Approach	Reactive repairs	Predictive digital diagnostics

Steady work boosts total factory output. A Sanhui slitting machine runs well all day. Workers cut big rolls without resets. A Sanhui roll slitting machine cuts tough materials easily.

Upgrading lines helps use staff well. Fewer workers manage lines easily. Each custom roll slitting machine cuts clean roll edges. Buying an advanced slitting machine brings long wins.

Smart controls join logic chips with clear visual screens. They upgrade converting work fast. They stop manual math errors. They keep web moves steady every shift. Your plant runs every roll slitting machine well. Rolls stay firm. Setup delays drop fast.

Key Operational Results: Smart control chips give high accuracy. Fast alarms and safety door locks shield workers.

Great slitting accuracy hits ±0.1mm easily.
Less material waste and fast setup saves.
Automated stop tools boost worker safety fast.

Upgrading lines helps you beat competitors easily. Sanhui Machinery builds top touch screen slitting machine units. They boost total factory work fast. Pick a proven slitting machine for your needs. You grow daily material yields and win long success.

FAQ

How does an automated control system improve slitting accuracy?

Main logic units read live data fast. They check pull tools and counter parts. They change motor speeds automatically. They shift blade paths fast too. This fixes loose material shifts. It gives accurate cuts to ±0.1mm.

Efficiency Tip: Touch screen recipe storage helps you open pull setups fast. It cuts change times a lot.

What substrates can you process on these machines?

You cut many soft materials easily. Smart tension setups handle thin plastic wraps. They process paper and metal sheets well. They work on sticker tags and cloth. These options fit packing, tech, and print work.

What are the main types of slitting machines?

Checking different types of slitting machines helps you pick well. You find good frames for plant needs.

How do modern touch screens reduce setup waste?

You type true roll sizes on screens. The main logic unit updates blades fast. It sets motor speeds right away. You stop hand placement errors. This saves costly raw stock each shift.

What maintenance support does Sanhui Machinery provide?

Sanhui Machinery gives full tech help anytime. You get online checks to fix faults. Our expert team plans visits fast. They arrive in 48 hours. This help keeps your line running.
