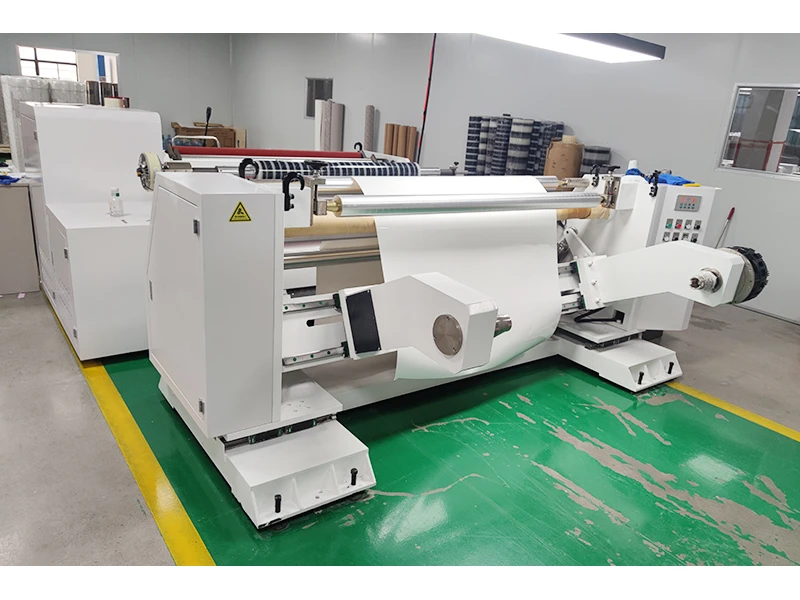

SHTH-A Laminating Machine | Multi-Material Film, Fabric & Insulation Roll Laminating Equipment
The SHTH-A laminating machine is engineered for high-precision lamination of flocked fabric, solar backsheets, PET, PVC, plastic film, and insulation materials. Powered by Siemens PLC intelligent control with dual/triple servo drive, it delivers firm bubble-free bonding at speeds up to 400 m/min, with customizable working widths of 1300mm and 1600mm to meet diverse production requirements.
Performance & Key Features
Intelligent Siemens PLC Control System
Integrated with automatic meter counting, residual material detection & alarm, and automatic shutdown at preset length. Real-time status monitoring prevents material waste and reduces manual operation errors, ensuring stable and controllable lamination quality.
Shaftless Hydraulic Loading — Over 1000kg Capacity
Independent shaftless hydraulic loading system installed on the same side as the main unit. No manual handling required, compatible with rolls of various specifications, effectively reducing labor intensity and improving loading efficiency.
Automatic Swing-Out Unloading Arm
Single-side swing-out unloading design automatically pushes finished rolls onto the unloading arm after shutdown. Eliminates manual unloading, boosts efficiency, and suits mass continuous production.
High-Sensitivity EPC Web Guiding (±0.1mm)
Precision automatic web guiding system ensures accurate lamination alignment and prevents material deviation even with uneven-edge raw materials, guaranteeing uniform and neat finished product dimensions.
Dual/Triple Servo Motor Drive
Quick response and smooth operation with precisely coordinated lamination and rewinding speed. Maintains stable, deviation-free performance throughout the entire production run.
Laser Positioning for Paper Tube Alignment
Built-in laser lamp enables automatic paper tube alignment for fast positioning, reduces manual commissioning time, and enhances the precision of lamination and rewinding operations.
High-Speed Operation — Up to 400 m/min
Maximum running speed of 300–400 m/min balances high-speed throughput with precision, meeting mass production requirements and significantly improving productivity.
Wide Compatibility & Customization
3–6 inch air expansion shafts available for unwinding; 3-inch differential shafts for rewinding. Custom shaft sizes available. Maximum unwinding diameter 800mm, rewinding diameter 450mm; special roll diameters and machine width fully customizable.

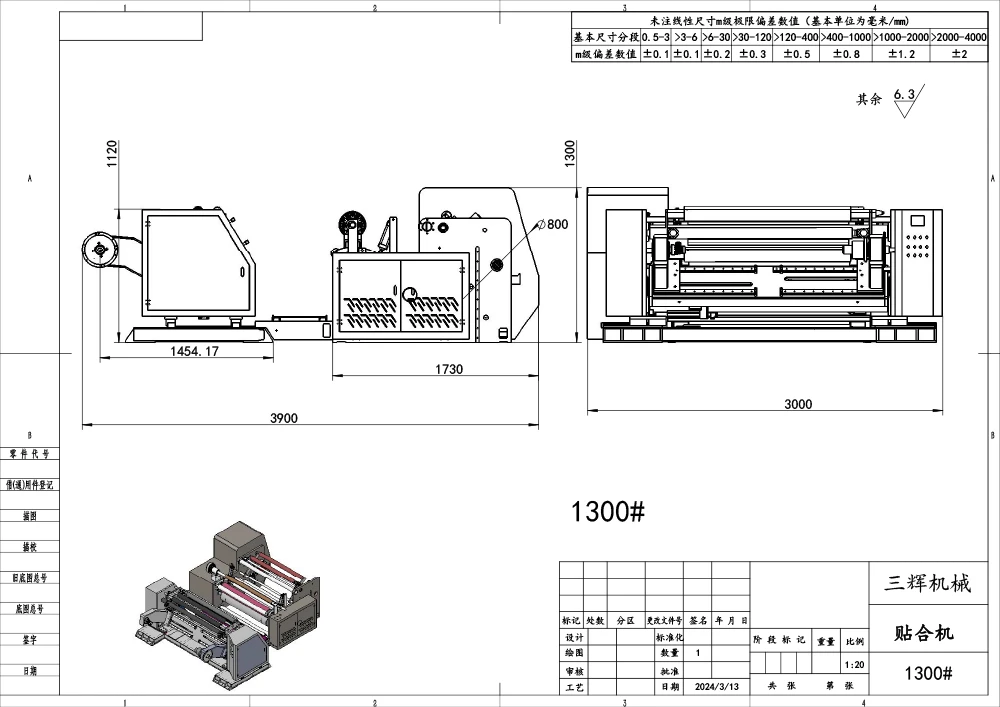

Technical Specifications
|
Model |
型号 |
SHL-A |
SHL-A |
|
Jumbo roll with |
卷材宽度 |
1300mm |
1600mm |
|
Max.Dia of materiai |
放卷直径 |
1000mm |
1000mm |
|
Max.Dia of rewind |
收卷直径 |
800mm |
800mm |
|
Slitting speed |
分切速度 |
10-200/min |
10-200/min |
|
Tolerance of EPC |
纠偏精度 |
±0.1mm |
±0.1mm |
|
Power |
总功率 |
15kw |
16kw |
|
Weight |
机器重量 |
3000kg |
3200kg |
Applicable Materials
Flocked Fabric & Textile Lamination
Smooth, firm bonding for flocked fabrics and textile substrates, ideal for automotive interior and upholstery composite applications.
Solar Backsheet & PET Film Lamination
Precision tension control ensures bubble-free adhesion for solar backsheets, PET films, and other energy-sector composite materials.
PVC, Plastic Film & Insulation Materials
Stable lamination for PVC, plastic films, and electrical insulation materials, supporting adhesive tape, composite film, and technical material converting.
Why Choose Sanhui SHTH-A Laminating Machine?
- 9-in-1 intelligent control — Siemens PLC with auto meter counting, residual alarm, and preset-length shutdown
- Heavy-duty loading — Shaftless hydraulic system handles 1000kg rolls without manual labor
- Precision guiding — Imported EPC web guide maintains ±0.1mm tolerance
- Flexible customization — Working width, shaft specs, and roll diameters tailored to your production needs
- Servo-driven stability — Dual/triple servo motors ensure smooth, deviation-free operation at up to 400 m/min
Frequently Asked Questions
What materials can the SHTH-A laminating machine process?
The SHTH-A is suitable for flocked fabric, solar backsheets, PET, PVC, plastic film, insulation materials, adhesive tape, and composite films. It handles a wide range of roll materials for deep processing applications.
What is the maximum lamination speed?
The maximum running speed reaches 300–400 m/min, depending on the model configuration and material type, balancing high-speed output with lamination precision.
What working widths are available?
Two standard models are available: 1300mm and 1600mm working width. Custom widths can be manufactured according to specific production requirements.
What is the maximum unwinding and rewinding diameter?
The standard maximum unwinding diameter is 1000mm and rewinding diameter is 800mm. Special roll diameters can be customized to fit different production scenarios.
Can the shaft specifications be customized?
Yes. 3–6 inch air expansion shafts are available for unwinding, and 3-inch differential shafts for rewinding. Custom shafts of special sizes can also be provided upon request.
How does the EPC web guiding system work?
The high-sensitivity automatic web guiding system maintains ±0.1mm precision, ensuring accurate lamination alignment and preventing material deviation even with uneven-edge raw materials.
