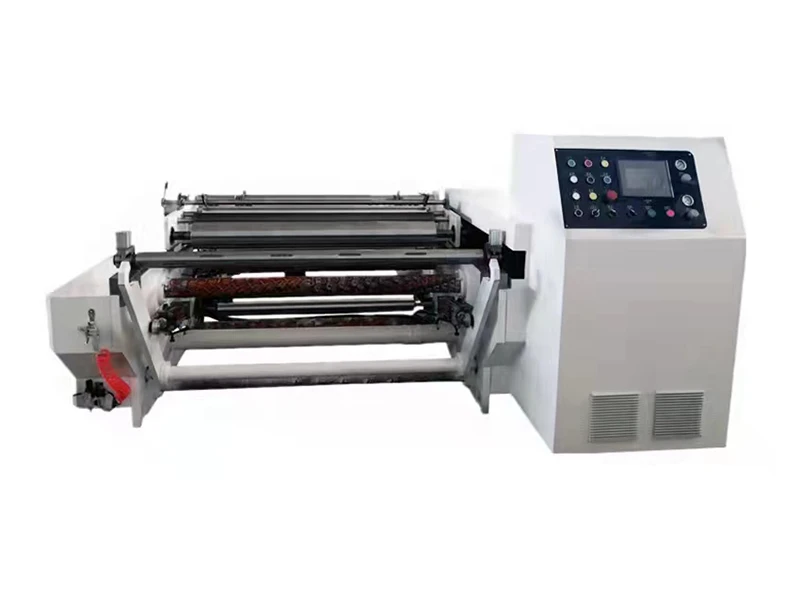

SHDZ-FJ Single Shaft Rewinder | Single-Shaft Paper, Film and Label Rewinding Machine with Edge Trimming and Defect Inspection

The SHDZ-FJ single shaft rewinder is a versatile rewinding machine designed for single-shaft paper, film, and label rewinding applications. It combines adjustable speed and tension control with consistent finished roll quality to improve slitting, cutting, and rewinding consistency while reducing material waste and operator workload. Integrated edge trimming and online surface defect inspection ensure high-quality output for woodfree paper, coated paper, kraft paper, silicone-coated paper, aluminum foil, PVC, plastic film, and insulation materials across paper processing, printing packaging, and flexible packaging industries.

Core Functions and Features

Single-Shaft Rewinding System

The single-shaft design provides stable, continuous rewinding for a wide range of roll materials. The shaft configuration supports consistent winding tension and uniform roll density, producing tightly wound finished rolls suitable for downstream printing, laminating, and converting processes.

Adjustable Speed and Tension Control

Speed and tension are fully adjustable to match material characteristics — from delicate thin films to heavier paper stocks. This flexibility prevents material wrinkling, telescoping, or core deformation, ensuring optimal rewinding quality across diverse material types.

Integrated Edge Trimming

Built-in edge trimming functionality removes irregular material edges during the rewinding process, producing clean, square finished rolls ready for immediate downstream use without additional trimming operations.

Online Surface Defect Inspection

The integrated online surface defect inspection system monitors material quality during rewinding, detecting surface flaws, coatings defects, and contamination in real time. This enables operators to identify and address quality issues without interrupting production.

Consistent Finished Roll Quality

Precise tension control and uniform winding pressure ensure consistent roll density and edge quality across every finished roll. This consistency reduces waste in downstream processes and improves overall production yield.

Flexible Roll Specification Control

Working width, roll diameter, material type, production speed, and optional control functions can all be selected according to the customer's actual production requirements, enabling a customized solution that matches specific operational needs.

Technical Overview

Customization Options

Working width, roll diameter, material type, production speed, and optional control functions can be selected according to customer's actual production requirements. Sanhui Machinery accepts material samples, master-roll width, finished-roll size, and target output specifications for machine selection, testing, and customized quotation.

Applicable Materials

Paper Materials

Woodfree paper, straw paper, coated paper, white cardstock, and kraft paper for printing, packaging, and stationery applications. The adjustable tension system handles both lightweight and heavier paper grades without wrinkling or tearing.

Coated and Specialty Papers

PE-coated paper and silicone-coated paper for food packaging, release liner, and label applications. The edge trimming function ensures clean edges on coated materials where edge quality is critical.

Foil and Film Materials

Aluminum foil, PVC, and plastic film for flexible packaging, food packaging, and industrial applications. The single-shaft rewinding system maintains consistent tension on thin, slippery films to prevent telescoping.

Insulation Materials

Electrical and thermal insulation materials for industrial manufacturing. The defect inspection system is particularly valuable for insulation applications where material integrity is safety-critical.

Application Industries

Paper Product Processing

Rewinding and edge trimming for paper mills, paper converters, and stationery manufacturers. The machine improves slitting and rewinding consistency while reducing material waste in high-volume paper processing operations.

Printing and Packaging

Pre-printing roll preparation and post-printing rewinding for printing houses and packaging converters. The consistent roll quality ensures smooth feeding in downstream printing and laminating equipment.

Flexible Packaging Production

Foil and film rewinding for flexible packaging manufacturers. The adjustable speed and tension control accommodates the diverse material range used in food packaging, pharmaceutical packaging, and industrial barrier film applications.

Label and Tape Converting

Single-shaft rewinding for label stock, silicone-coated release liners, and tape materials. The edge trimming and defect inspection functions ensure label-grade quality standards.

Why Choose the SHDZ-FJ Single Shaft Rewinder

Reduced Material Waste

Precise tension control and edge trimming minimize material waste during rewinding. The online defect inspection catches quality issues early, preventing the production of defective rolls that would be rejected downstream.

Lower Operator Workload

The integrated design combines rewinding, edge trimming, and defect inspection in a single pass, reducing the need for multiple machines and manual handling. Automated tension and speed control reduce operator intervention during production runs.

Customizable to Your Requirements

Every aspect of the machine — from working width to control system options — can be configured to match your specific production requirements. Sanhui Machinery provides material testing and customized quotations based on your actual needs.

Proven Sanhui Quality

Manufactured by Wenzhou Sanhui Machinery Manufacturing Co., Ltd. with a track record of reliable slitting and rewinding equipment for global paper, film, and packaging industries. Full technical support and after-sales service included.

Frequently Asked Questions

What materials can the SHDZ-FJ single shaft rewinder process?

The machine stably processes woodfree paper, straw paper, coated paper, white cardstock, kraft paper, PE-coated paper, silicone-coated paper, aluminum foil, PVC, plastic film, and insulation materials. Speed and tension are adjustable to match each material type.

What are the core functions of this machine?

The SHDZ-FJ combines three integrated functions: edge trimming, automatic rewinding, and online surface defect inspection. This all-in-one design improves production consistency while reducing material waste and operator workload.

Can the machine specifications be customized?

Yes. Working width, roll diameter, material type compatibility, production speed, and optional control functions can all be selected according to your actual production requirements. Send your material sample, master-roll width, finished-roll size, and target output to Sanhui Machinery for a customized quotation.

How does the defect inspection system work?

The online surface defect inspection system monitors material quality during the rewinding process in real time, detecting surface flaws, coating defects, and contamination. This enables operators to identify and address quality issues without interrupting production.

What industries is this rewinder suitable for?

The SHDZ-FJ is widely used in paper product processing, printing and packaging, flexible packaging production, and label and tape converting industries. Its versatility in handling paper, film, foil, and insulation materials makes it suitable for diverse manufacturing environments.

How does single-shaft rewinding compare to dual-shaft systems?

Single-shaft rewinding is ideal for operations prioritizing consistent roll quality and simpler operation over maximum throughput. It offers precise tension control on a single winding axis, making it well-suited for specialty materials, smaller batch sizes, and applications where roll quality is more critical than production volume.
